In the intricate world of construction and design, precision is paramount. From cabinetry to wall panels to molding, millwork adds a touch of sophistication to spaces.
Everything you need to know about the realm of millwork shop drawings, exploring their purpose, components, creation process, and the critical role they play in ensuring the success of millwork projects.
The path to achieving successful millwork projects involves more than just creativity; it demands careful planning and coordination. This is where millwork shop drawings step in, providing the blueprint for accuracy, quality, and consistency.
Feel free to click the links below to jump to the relevant sections of this article.
What is the Purpose of Millwork Shop Drawings?
Millwork shop drawings serve a critical purpose in the millwork industry by providing detailed technical drawings that aid in the fabrication and installation of cabinetry. Here are some of the key purposes of millwork shop drawings.
1.
Communication and Collaboration
Millwork shop drawings facilitate communication and collaboration between stakeholders in a project, including architects, contractors, and millwork fabricators. By providing a visual representation of the millwork and its specifications, millwork shop drawings help to ensure that everyone involved in the project is on the same page.
2.
Accuracy
Millwork shop drawings provide accurate information on the dimensions, materials, hardware, finishing, and other specifications. This helps to ensure that the final product meets the design intent.
3.
Quality
Millwork shop drawings help to ensure the quality of the cabinetry by providing detailed instructions on how they should be fabricated and installed. This includes information on the joinery, assembly, and installation methods.
4.
Consistency
Millwork shop drawings help to ensure consistency by providing standard details and specifications that can be replicated across multiple items. This is particularly important for projects that require multiple identical or similar millwork pieces.
In essence, millwork shop drawings are indispensable tools that promote clear communication, guarantee accuracy, enhance quality, and ensure consistency in every millwork project.

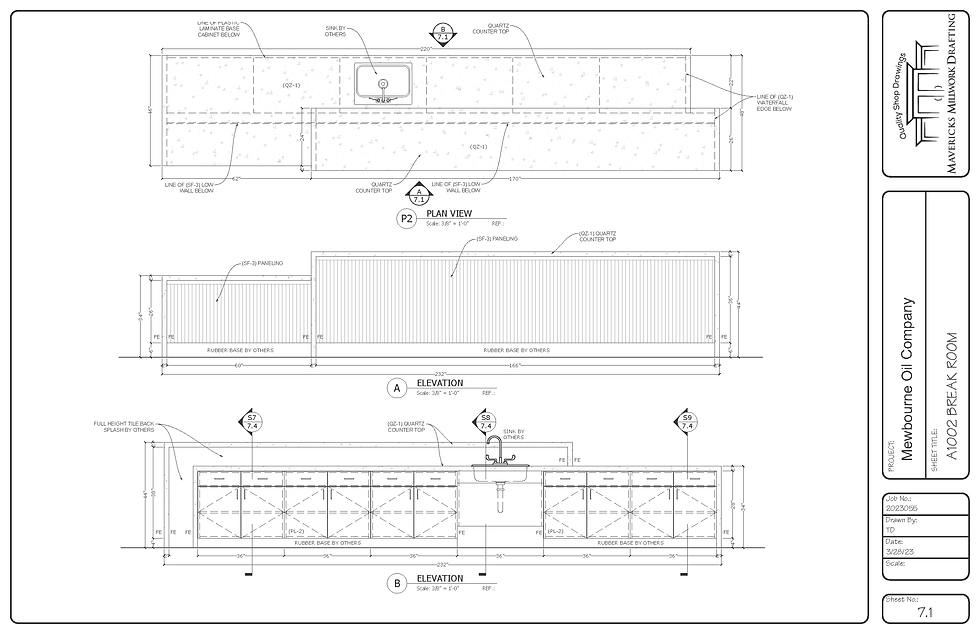

What are the Components of Shop Drawings?
Millwork shop drawings are comprehensive documents, incorporating several vital components that provide an in-depth understanding of millwork. Here is a quick breakdown:
Plan Views: Top-down views reveal the shape and dimensions of millwork within the room. They can also indicate the placement of appliances or equipment.
Elevation Views: These front-facing drawings display the millwork height, width, and decorative features, such as moldings, hardware, and finish materials.
Section Views: Cutaway views expose the internal structure of cabinetry, highlighting joints, fasteners, hardware, and materials.
Details and Callouts: These notes provide specific information on construction and installation. Expect details on joinery, hardware placement, and finishing techniques.
Material Specifications: Information on the type and grade of wood or other materials used. They may also include information on the color, grain pattern, and other characteristics of the material as well as the manufacturer or supplier.
Hardware Specifications: Detailed information on hardware, such as hinges, locks, or handles, is crucial for precise fabrication and installation.
Finish Specifications: Understand the type and method of finishing, like stain, paint, or varnish, to ensure the final product meets the desired aesthetic.
Together, these components provide a detailed technical representation of millwork. They serve as a critical tool for ensuring accuracy, quality, and consistency in the fabrication and installation of each project.
How are Shop Drawings Made?
The creation of millwork shop drawings typically involves several steps and requires the expertise of skilled professionals. Here are some of the key steps in the creation of millwork shop drawings:
Review of Design Drawings
Start by reviewing design drawings from the architects or designers. These drawings serve as the project's foundation, outlining their size, shape, and location within the building.
Site Measurement
Once the design drawings have been reviewed, the next step is to take measurements of the site where the millwork will be installed, if possible. Some dimensions may not be available and will require a "VIF" (verify in field) note on the shop drawings. This ensures that the shop drawings will accurately reflect the dimensions of the space.
Creation of Shop Drawings
Once the draftsman has a comprehensive understanding of the design intent, they can begin drafting the shop drawings, making sure they have an open line of communication to the project manager.
Approval Process
After the shop drawings have been drafted, they are submitted to the architect or designer for approval. Any necessary revisions are made based on feedback from the client.
Fabrication and Installation
Once the shop drawings are approved, the millwork shop can begin fabricating and installing the project. The shop drawings will serve as a guide for this process, ensuring that the final product meets the design intent.
The creation of millwork shop drawings requires a combination of technical expertise, communication skills, and attention to detail. They serve as a critical tool in the fabrication and installation of millwork, helping to ensure accuracy, quality, and consistency.
Why should Shop Drawings be Reviewed Before Fabrication and Installation?
Reviewing millwork shop drawings isn't just a formality; it's a crucial step in the process. Here's why it matters:
Ensuring Accuracy: Shop drawings provide intricate technical information. Reviewing them guarantees that the millwork will be fabricated and installed as intended.
Identifying Issues: Thorough review can unearth issues or potential problems early, allowing for corrections before costly mistakes occur.
Coordinating with Other Trades: Millwork is often part of a larger construction project that involves multiple trades. Reviewing the shop drawings helps to ensure that the millwork is coordinated with other trades, such as electrical, plumbing, or HVAC, to avoid conflicts or issues during installation.
Ensuring Compliance: Millwork must meet various codes and regulations. Reviewing shop drawings helps confirm compliance with requirements like fire safety, disability accessibility, and building codes.
Quality Control: The review process is a critical quality control measure, guaranteeing the millwork will meet the highest standards of craftsmanship.
Millwork shop drawings are indispensable for the fabrication and installation of millwork. They demand a blend of technical expertise, communication skills, acumen, and attention to detail. By thoroughly reviewing shop drawings, architects, designers, contractors, and millwork fabricators can ensure precision, quality, and the realization of their project's vision. Millwork shop drawings are the bridge between concept and reality, and their role in construction and design cannot be overstated.
